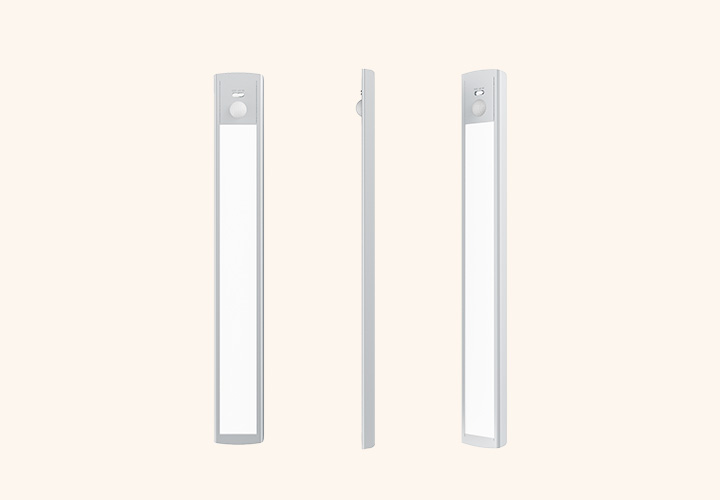

GW-CBE1

FEATURES

LED Technology—Tunable white Warm White&Natural White&Cold White light, or only one of them is viable too.
Two Sensing Modes—Sensing time is separated by daytime and nighttime for different needs.

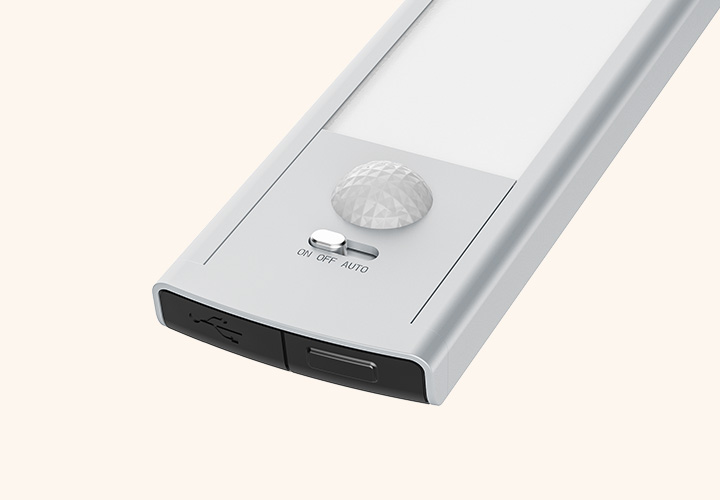

PIR Sensor—In Sensing mode, human body motion sensor works when brightness is lower than 6 lux.
Stepless Dimming—10-100% stepless dimming.

PRODUCT PARAMETER

Model Product Dimension Material Color Battery Luminous Flux Charging RA IP Lifespan LED QTY Color Temp Power PIR sensing distance
GW-CBE1-K1-A1
GW-CBE1-K3-A1

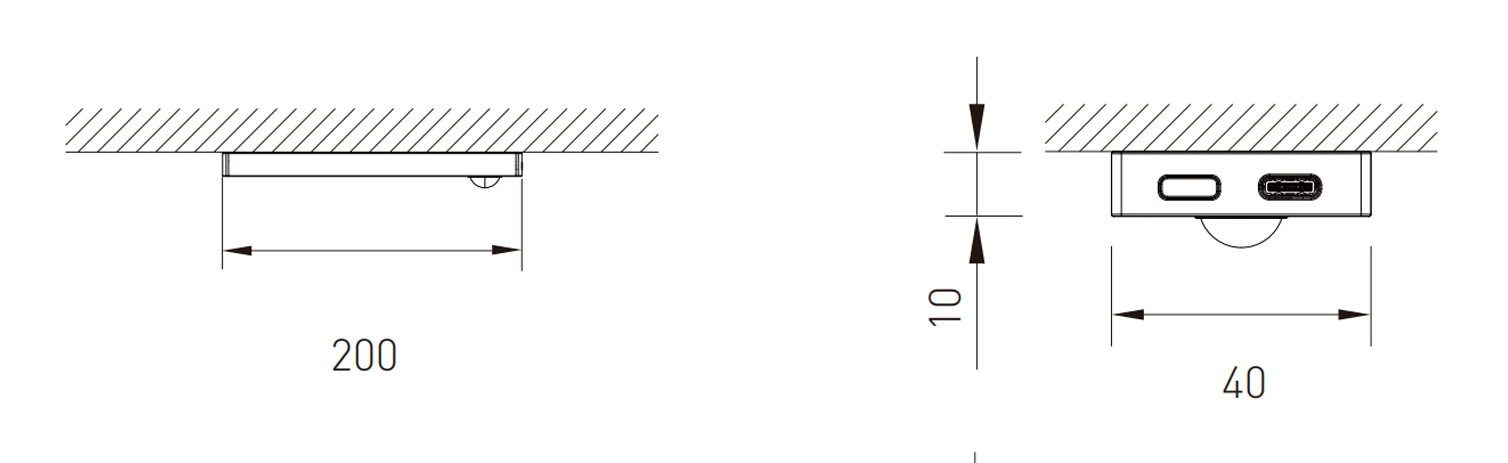

200*40*10mm ABS+PS+Aluminium Silver/Sky grey 3.7V 1000mAh 60lm 5V DC 1A >80 20 20000H 34 PCS SMD LED
68 PCS SMD LED
3000K/4000K/6500K
CCT3000K-4000K-6500K
1w 3-6m
GW-CBE1-K1-A1
GW-CBE1-K3-A1
300*40*10mm ABS+PS+Aluminium Silver/Sky grey 3.7V 1000mAh 120lm 5V DC 1A >80 20 20000H 44 PCS SMD LED
88 PCS SMD LED
3000K/4000K/6500K
CCT3000K-4000K-6500K
2w 3-6m
GW-CBE1-K1-A1
GW-CBE1-K3-A1
400*40*10mm ABS+PS+Aluminium Silver/Sky grey 3.7V 3000mAh 150lm 5V DC 1A >80 20 20000H 64 PCS SMD LED
128 PCS SMD LED
3000K/4000K/6500K
CCT3000K-4000K-6500K
2.5w 3-6m
GW-CBE1-K1-A1
GW-CBE1-K3-A1
500*40*10mm ABS+PS+Aluminium Silver/Sky grey 3.7V 3000mAh 180lm 5V DC 1A >80 20 20000H 84 PCS SMD LED
168 PCS SMD LED

3000K/4000K/6500K
CCT3000K-4000K-6500K

3w 3-6m
GW-CBE1-K1-A1
GW-CBE1-K3-A1
600*40*10mm ABS+PS+Aluminium Silver/Sky grey 3.7V 4400mAh 240lm 5V DC 1A >80 20 20000H 104 PCS SMD LED
208 PCS SMD LED

3000K/4000K/6500K
CCT3000K-4000K-6500K

4w 3-6m

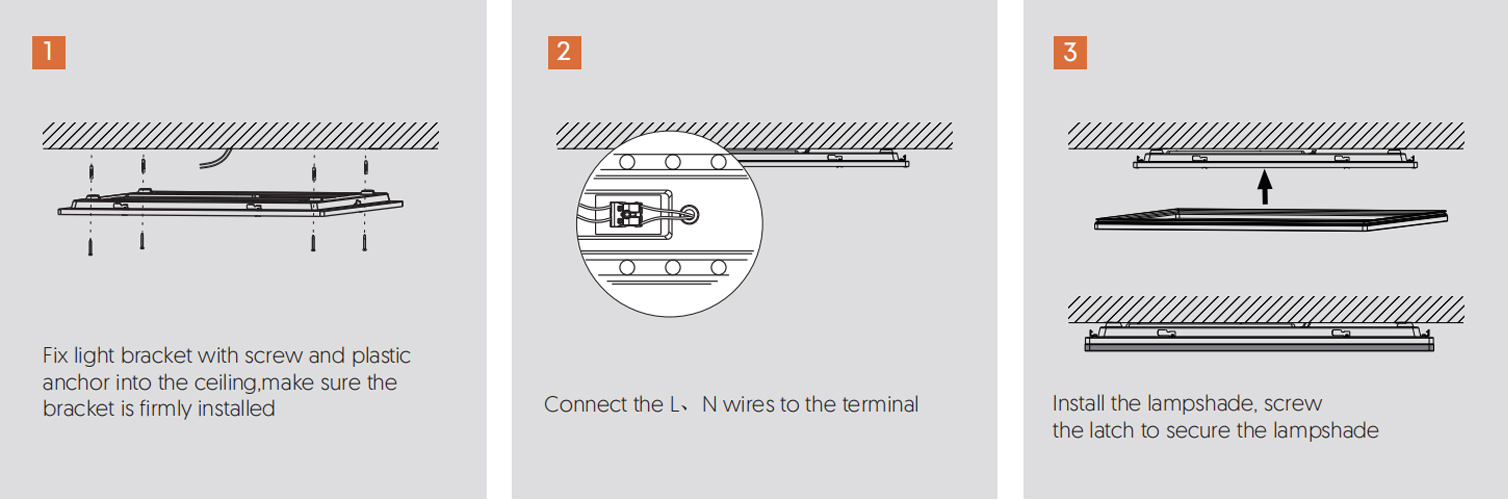

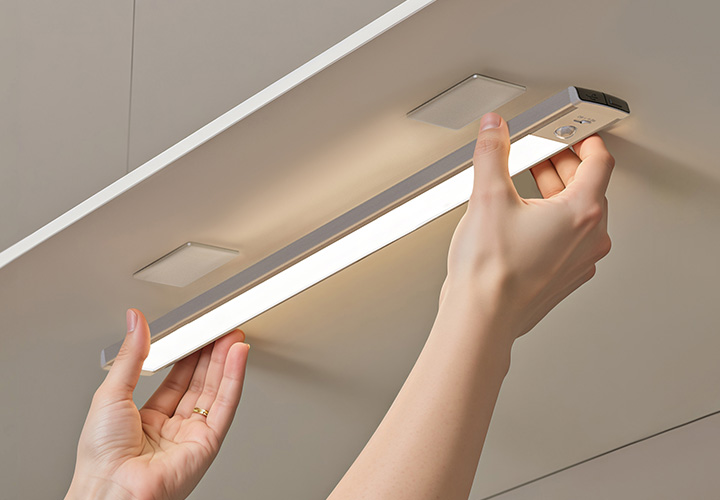

MOUNTING PROCEDURE
