GW-CBB1

FEATURES

LED Technology—Three selectable color temps.

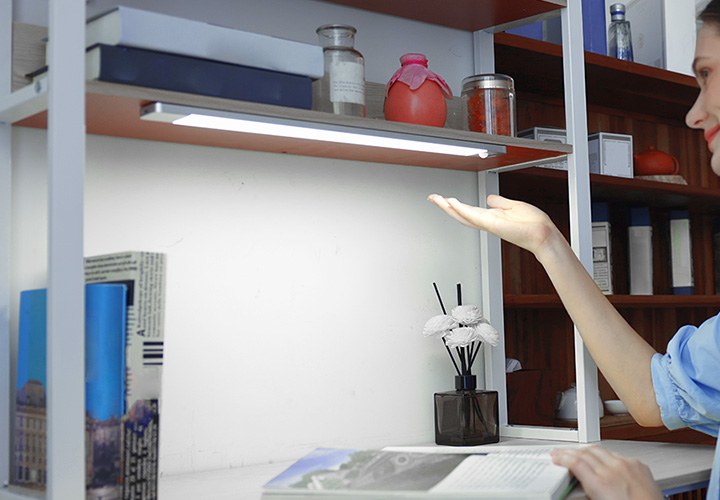

Hand Sweep Sensing—In ON mode, hand sweep can turn on/off the light, proves the convenience of operation.
PIR Sensor—In AUTO mode, human body motion sensor works when brightness is lower than 6 lux.
Stepless Dimming—10-100% stepless dimming.

PRODUCT PARAMETER

Model Product Dimension Material Color Battery Luminous Flux Charging RA IP Lifespan LED QTY Color Temp Power PIR sensing distance Charge Time
GW-CBB1-K1-A2-250 250*40*10mm ABS+PS+Aluminium Wood/Silver/Marble/Black 3.7V 1500mAh 60lm 5V DC 1A >80 20 20000H 34 PCS SMD LED 3000K/4000K/6500K 1w <8cm 3-6m
GW-CBB1-K1-A2-300 300*40*10mm ABS+PS+Aluminium Wood+Silver+Marble+Black 3.7V 2200mAh 120lm 5V DC 1A >80 20 20000H 44 PCS SMD LED 3000K/4000K/6500K 2w <8cm 3-6m
GW-CBB1-K1-A2-400 400*40*10mm ABS+PS+Aluminium Wood+Silver+Marble+Black 3.7V 3000mAh 150lm 5V DC 1A >80 20 20000H 64 PCS SMD LED 3000K/4000K/6500K 2.5w <8cm 3-6m
GW-CBB1-K1-A2-500 500*40*10mm ABS+PS+Aluminium Wood+Silver+Marble+Black 3.7V 3000mAh 180lm 5V DC 1A >80 20 20000H 84 PCS SMD LED 3000K/4000K/6500K 3w <8cm 3-6m

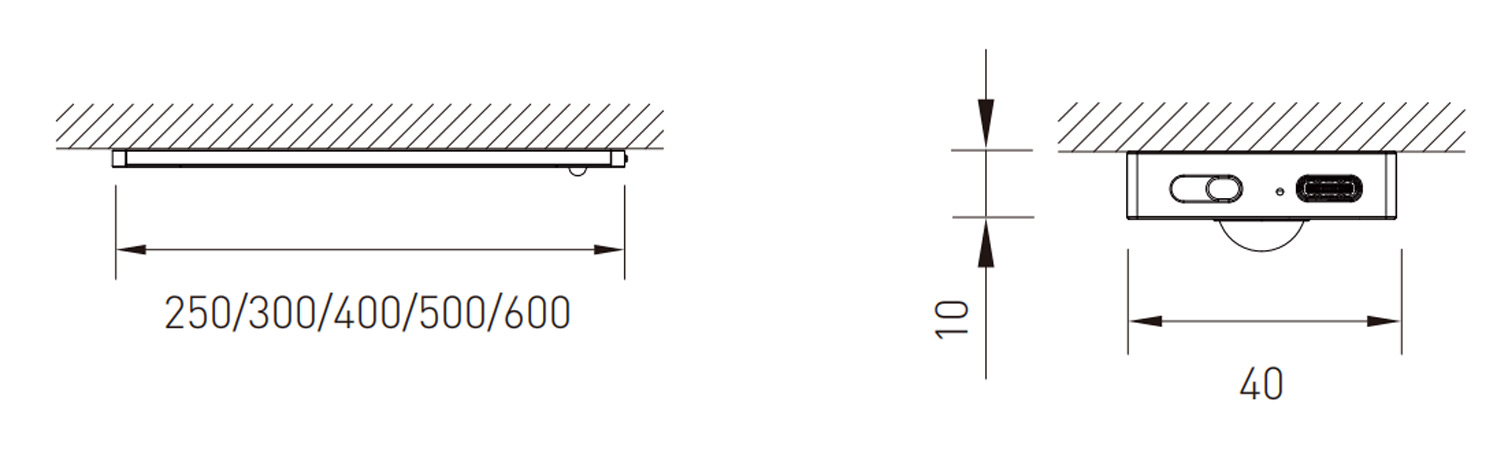

MOUNTING PROCEDURE
